Channels

Tags:

2 minute read

A channel defines one or more method of delivering alert notifications to external systems.

Notification Delivery Channels

Email Channel

One or more email address (comma separated) that will receive messages from alerts@trustgrid.io

PagerDuty Channel

Trustgrid will generate an incident via the PagerDuty API if provided a valid API routing key.

OpsGenie Channel

Trustgrid will generate an incident via the OpsGenie API if provided a valid API key with read and create and update permissions.

For both PagerDuty and OpsGenie the integration will automatically resolve issues if an event occurs that negates the initial triggering event. For example, if an event is triggered by a Node Disconnect and the node reconnects, the Node Connect event will resolve the incident via the API.

Slack Channel

Trustgrid can post the event data to a configured channel via a webhook.

Optionally, you can configure the slack event to be posted with formatting to make it easier to read as opposed to raw JSON.

Microsoft Teams Channel

Trustgrid can post event data to a configured Teams channel via an incoming webhook

Google Chat Channel

Trustgrid can post event data to a configured Google Chat (gChat) space via an incoming webhook. First create the webhook and then copy the webhook URL into the Trustgrid channel definition.

Only a single Slack or Teams channel, or Google Chat Space can be targeted by a Trustgrid channel definition. However, you can create multiple Trustgrid channels if you wish to post the event data to more than one Slack/Teams channel.

Example Event Data

The event data is delivered in JSON, as shown below, which depending on the integration can allow for additional parsing.

Example Event JSON

{
	"nodeName": "edge1", /* Name of the node that the event relates to */
	"expires": 1604801325, /* Unix epoch timestamp when this event will expire and automatically resolve */
	"level": "INFO", /* Alert severity */
	"eventType": "Node Disconnect", /* Matches to the event types */
	"source": "EKG",
	"message": "Node disconnected",
	"type": "Alert",
	"orgId": "8e1c2c05-2c86-4b1b-a0cc-############",
	"GS1PK": "Org#8e1c2c05-2c86-4b1b-a0cc-############",
	"_ct": {},
	"uid": "1jwV1R2R6itQUjPza9yqTE8a8zu",
	"GS1SK": "Alert#1jwV1R2R6itQUjPza9yqTE8a8zu",
	"_md": {},
	"domain": "example.trustgrid.io",
	"SK": "Alert#Node Disconnect",
	"_tp": "Alert",
	"PK": "Node#0895b104-5434-447b-8577-############",
	"state": "UNKNOWN",
	"nodeId": "0895b104-5434-447b-8577-############",
	"timestamp": 1604714923, /* Unix epoch timestamp when the event was first triggered */
	"channelID": "bc47ca84-1d04-454b-bedc-a55d1a917c0e", /* The unique id of the channel used to deliver this message. */
	"notes": ["Text from Description Field"],
	"alarmIDs": [
		/* A list of alarm filters that matched the event */
		"be324011-4bea-4392-a06a-541646decd39"
	]
}

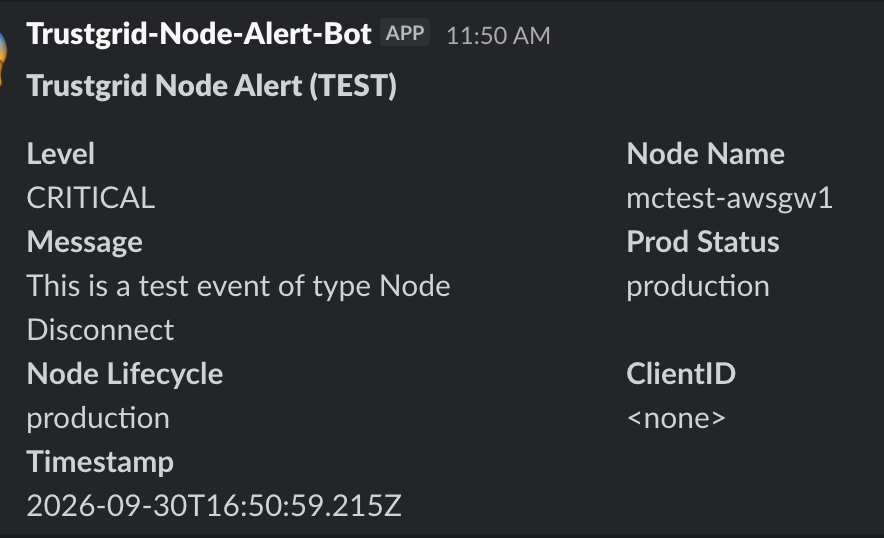

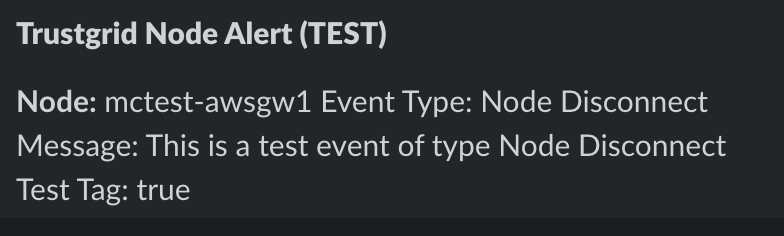

Example Formatted Slack Event

Below is an example of a formatted Slack event.
