Setting up Logstash for OpenTelemetry Export

Part 1: Configure Logstash to Receive OTEL Data

Here is an example logstash.conf that matches the Trustgrid export format:

input {
  http {
    port => 5044
    codec => json
  }
}

output {
  stdout {
    codec => rubydebug
  }
}

Part 2: Configure Trustgrid to Send OTEL Data

Step 1: Navigate to Exporters

1. In the Trustgrid Portal, go to Observability > Exporters.
2. Click Add Exporter.

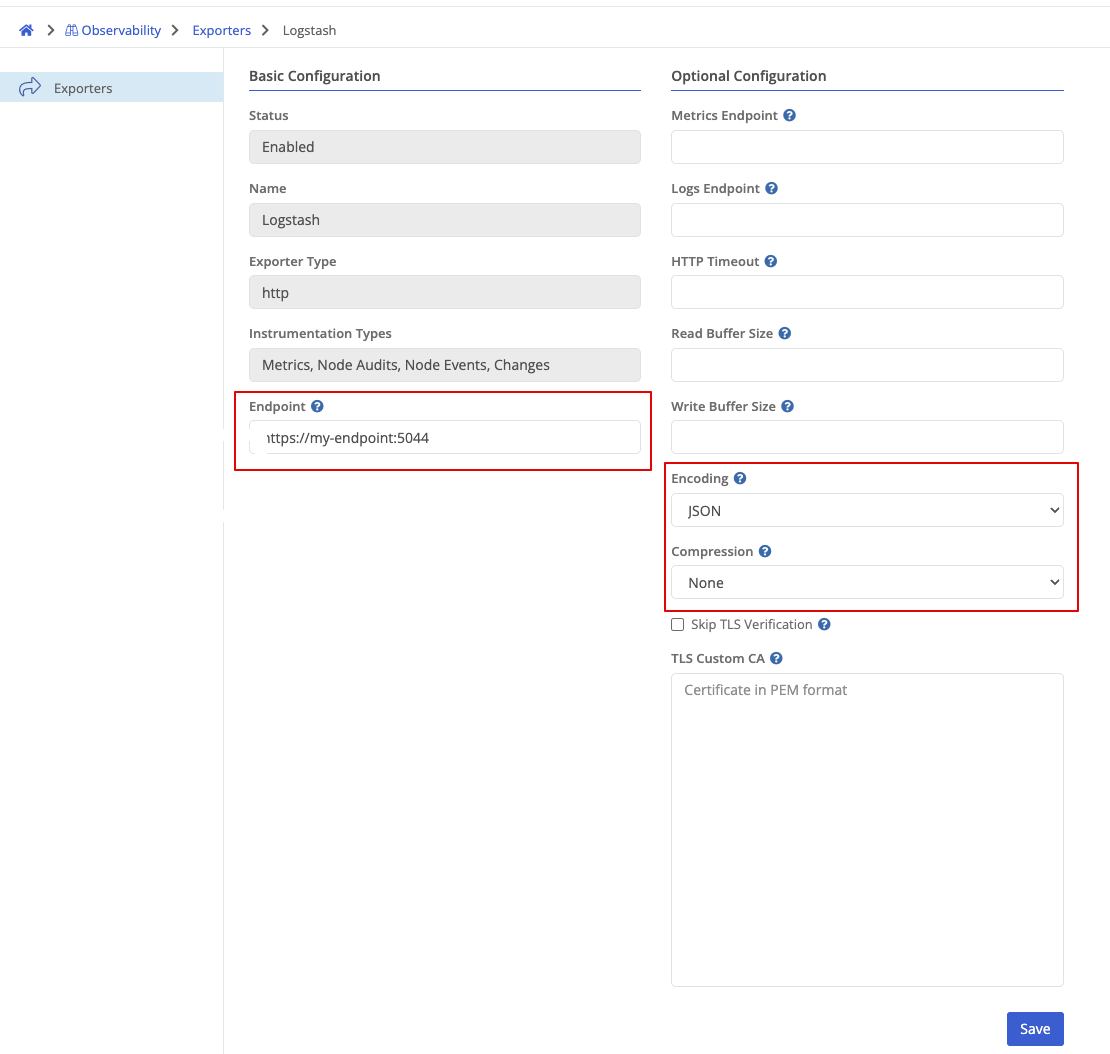

Step 2: Configure the Exporter

• Type: Select http.
• Exporter Name: Enter a descriptive name (e.g., logstash).
• Description: Optional.
• Instrumentation Types: Select one or more:
  • Metrics
  • Node Audits
  • Node Events
  • Changes

• Endpoint: Set this to your Logstash endpoint (e.g., http://logstash.internal:5044).

Trustgrid appends /v1/metrics or /v1/logs automatically depending on the instrumentation type. You can also explicitly set:

• Metrics Endpoint: Overrides default for metrics
• Logs Endpoint: Overrides default for logs (audits, events, changes)
