Setting up Splunk for OpenTelemetry Export

Part 1: Configure Splunk to Receive OTEL Data

Step 1: Enable HEC in Splunk

1. Log into your Splunk instance.

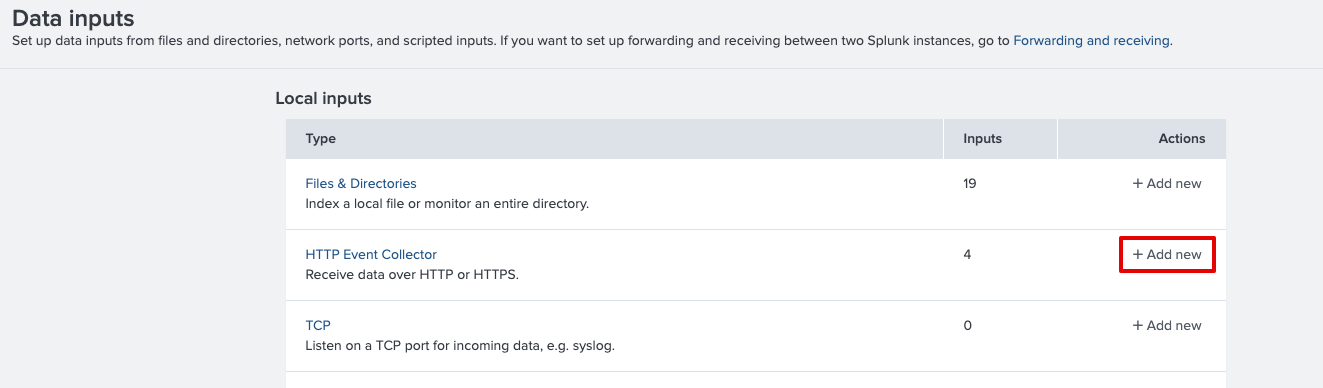

2. Navigate to: Settings > Data Inputs
3. Click Add New next to HTTP Event Collector (HEC)




Step 2: Create a New Input

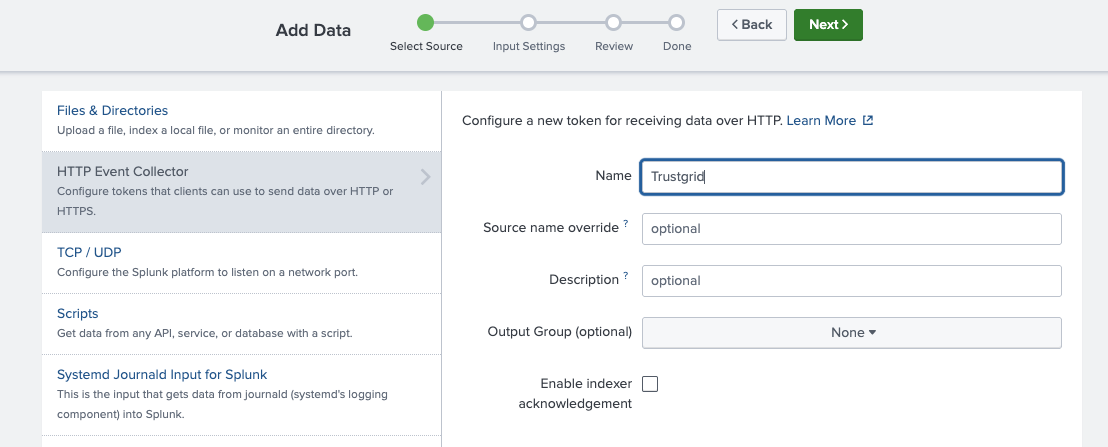

1. Enter a Name for the input (e.g., Trustgrid)
2. Leave other options at their default values unless otherwise required.
3. Click Next




Step 3: Create a New Index

1. On the Input Settings step, click Create a new index

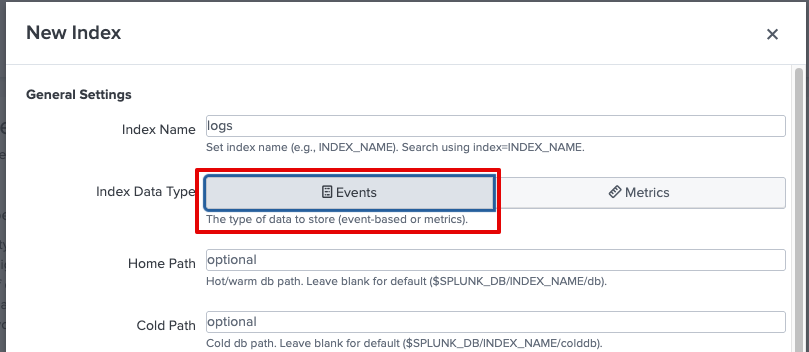

2. Provide a name (e.g., otel_metrics) and set the Index Data Type to Metrics (Node Telemetry) or Events (Node Audits, Changes, Events)

   Metric index



   Event (Node Audits, Changes, Events) index



3. Save the new index

4. Ensure it’s:

   • Added to the Allowed Indexes
   • Selected as the Default Index



Step 4: Complete the Setup

1. Click Review and then Done

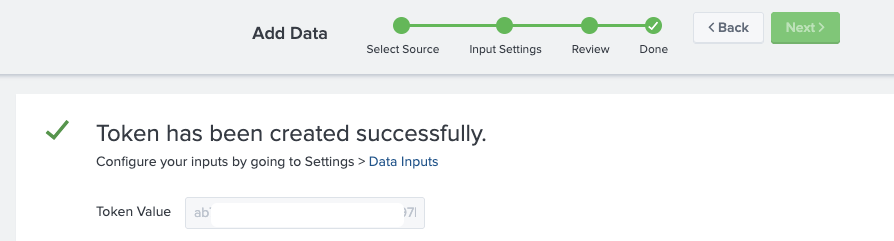

2. Copy the Token Value generated — you’ll use this in the Trustgrid Portal setup




Part 2: Configure Trustgrid to Export OTEL Data

Step 1: Access Exporter Settings

1. Log into the Trustgrid Portal
2. Navigate to: Management > Observability

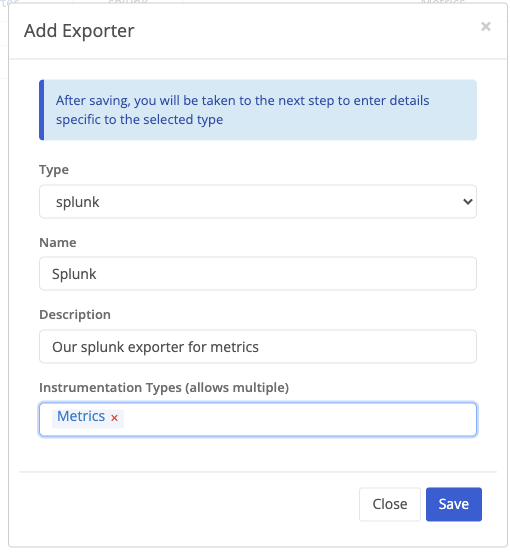

3. Click Add Exporter

Step 2: Configure Exporter

• Type: splunk

• Name: e.g., splunk-prod-exporter

• Description: Optional

• Instrumentation Types (select one or more):

  • Metrics
  • Node Audits
  • Node Events
  • Changes

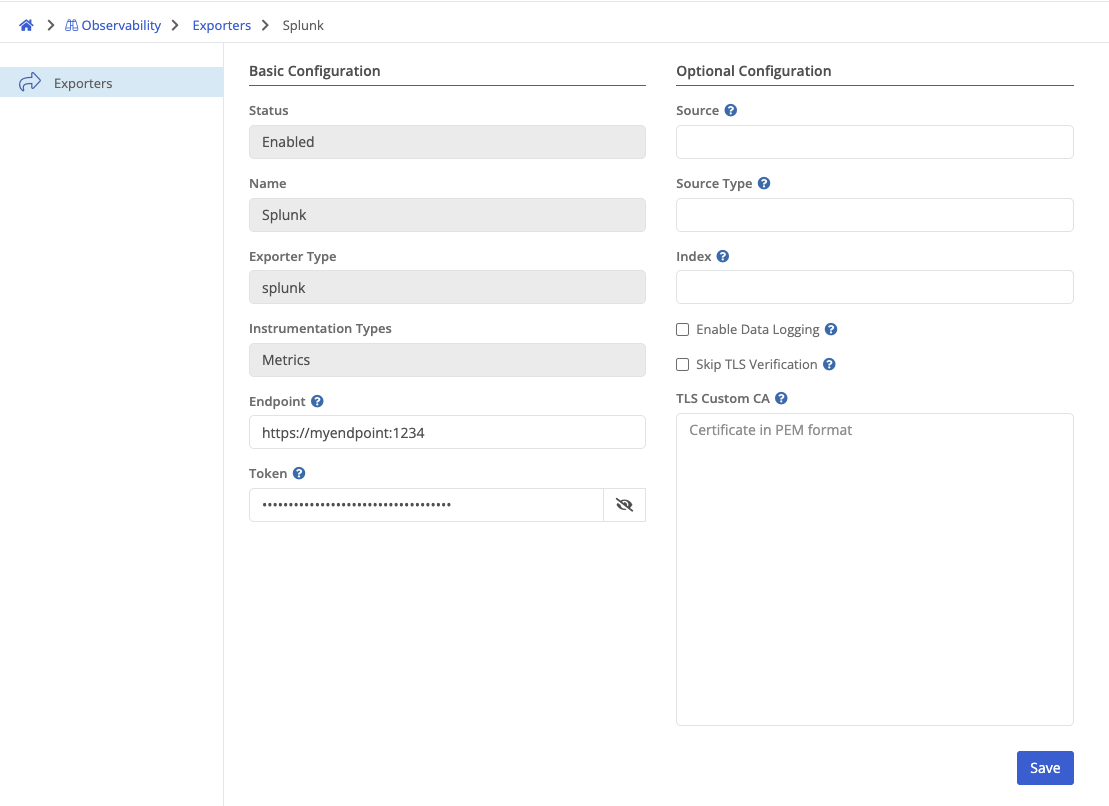

Step 3: Provide Endpoint Details

• Endpoint: The full URL to your Splunk HEC endpoint, e.g. https://your-splunk-host:8088
• Token: Paste the token you copied earlier
• Source / Source Type: Optional — maps to Splunk’s source fields
• Index: Optional - The name of the index created in Splunk (e.g., metrics)
• Enable Data Logging Optional - Used when sending log data like Node Audits, Events, and Changes to Splunk
• TLS Custom CA: Optional - Upload a certificate if using a custom CA
• Skip TLS Verification: Optional - Will skip TLS certificate verification (TLS will still be enabled)
